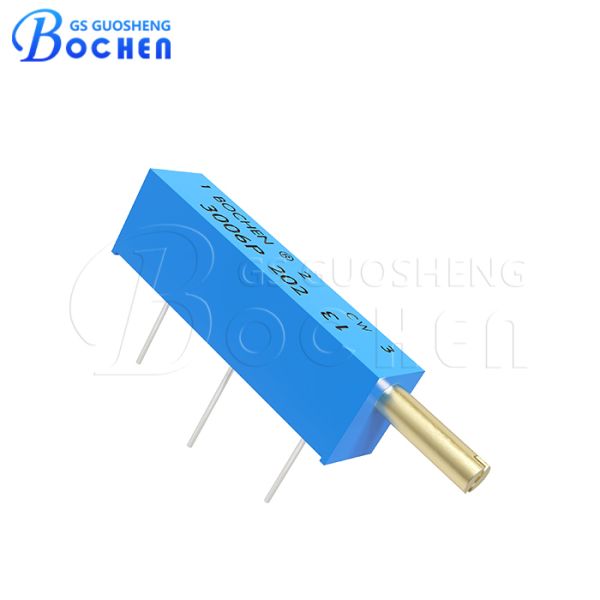

3006P-A1 0.75w 10k Ohm Adjustable Multiturn Trimming Potentiometer With 7mm Long Shaft
Descriptipion:
The 3006P-A1 cermet trimmer potentiometer is a precision variable resistor. With a Nominal Resistance Range of 10Ω-5MΩ, it is commonly used for fine adjustments in electronic circuits. This single-turn trim pot requires only one rotation to adjust its resistance. Its compact size, reliability, and accuracy make it a popular choice for applications such as audio equipment, instrumentation, and electronic prototypes where precise tuning or calibration is essential.
Specification:
| Electrical Characteristics | Nominal Resistance Range | 10Ω~5MΩ |
| Resistance Tolerance | ±10% |
| Terminal Resistance | ≤±1% R or 3Ω |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω |
| Insulation Resistance | 500 Vdc. R1≥1GΩ |
| Withstand Voltage | 101.3KPa, 500 Vac; 8.5KPa, 250 Vac |
| Dielectric Strength Sea Level | 500 Vac(1 Min.) |
| Effective Travel | 20(±2) Turns |
| Environment Characteristics | Weld Heat Resistance | 250ºC , 10 Sec. |
| Rated Power | 70ºC, 0.75W; 125ºC, 0W |
| Temperature Range | -55°C ~ + 125°C |
| Temperature Coefficient | ±250, ±100 ppm /°C |
| Temperature Variation | ΔR≤±2%R, Δ(Uab/Uac)≤±1% |
| Collision | 10-500Hz, 0.75mm, 6h ΔR≤±1%R, Δ(Uab/Uac)≤±2% |
| Vibration | 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2% |
| Electrical Endurance At 70°C | 1000 hours @ 70ºC Rated Power; ΔR≤±3%R |
| Mechanical Endurance | 200 Cycles, ΔR≤±3%R |
| Physical Characteristics | Total Mechanical Travel | 22±2 Turns |
| Starting Torque | ≤25 mN.m |
| Clutch Torque | ≤35 mN.m |
Dimension:
Packaging:
Packaging specification: 1. 25 pieces/tube, 4000 pieces/carton. 2. Customization package is available.
Application:
The 3006P cermet trimmer finds application in a wide range of electronic and electrical systems where precise resistance adjustment is essential. Its versatility and reliability make it suitable for various industries including telecommunications, consumer electronics, industrial automation, and medical devices.
In telecommunications, the 3006P trimmer is utilized in signal processing equipment, ensuring accurate impedance matching and signal integrity. In consumer electronics, it plays a crucial role in audio equipment, ensuring consistent audio performance by fine-tuning circuit parameters. Industrial automation applications benefit from its ability to calibrate sensors and controllers, optimizing operational efficiency and accuracy.
Additionally, the 3006P trimmer is employed in medical devices where precise control over electrical resistance is vital for reliable and safe operation. Its robust construction and wide resistance range make it suitable for both low-power and high-power applications, contributing to the stability and functionality of critical electronic systems.
Overall, the 3006P cermet trimmer stands as a dependable choice in various sectors where precision and durability are paramount, enhancing performance and reliability in electronic applications.
