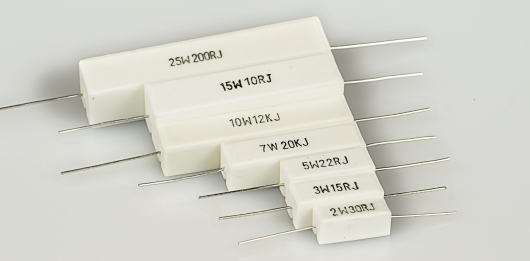

Power Electronics Component Rx27 Ceramic Encased Wirewound Cement Power Resistors 2W-40W

Description

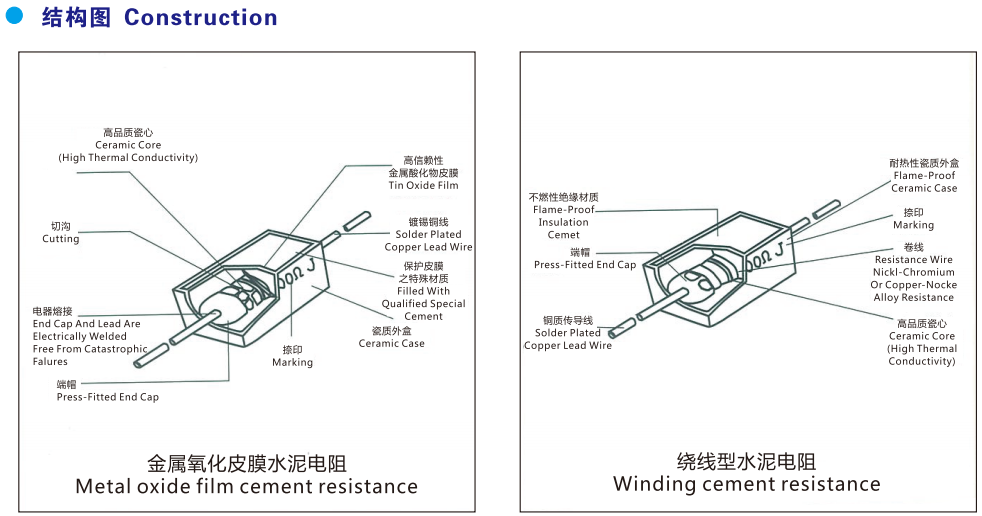

The RX27 cement resistor uses high-heat-dissipation talc and high-temperature-resistant materials as the resistor matrix, ensuring excellent heat dissipation. It features vibration resistance, weather resistance, and long-term stability. It boasts high power output, small size, easy installation, and an attractive appearance. The high-insulation, non-flammable filler is tightly bonded to the resistor matrix, resistance wire, and ceramic shell. Applications include frequency converters, controllers, servo motors, and high-demand, harsh control environments. It is an ideal component for power electronics and complies with RoHS and LEAD-FREE standards.

Features

• Low noise.
• Excellentinsulation being usedinPCB.
• Instand overload capability. Long term stability.
• Excellent heat dissipation.Small linear temperature coefficient.
• Metal oxide film cutting core can offer high range resistance (1Q~100KΩ ).
• Operating temperature range
  Wirewound:-40℃~+155C; Metaloxide film:-55°c~+155°C.
• Temperature around freezing lattice: 1W~10W 70°C; 15WAbove 25°C.

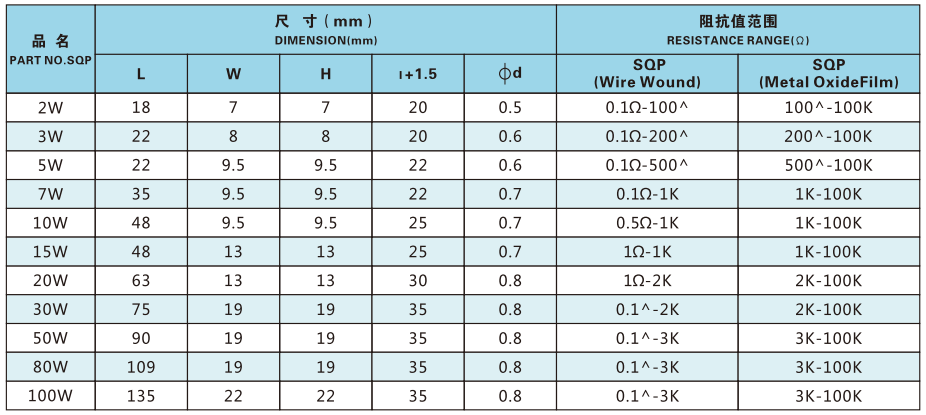

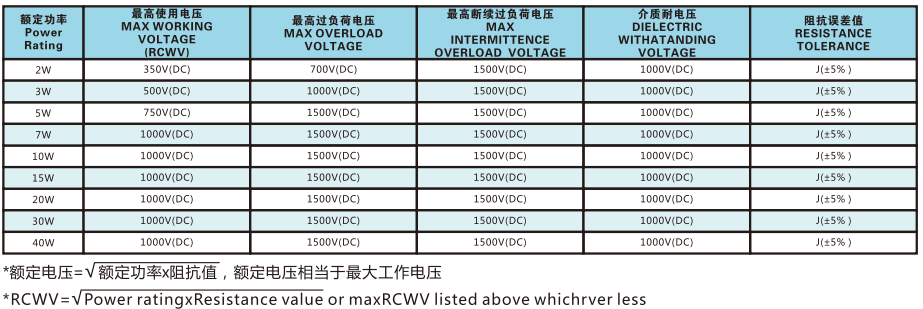

Specifications
